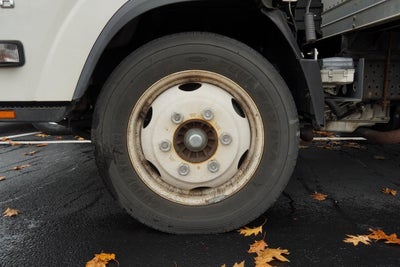

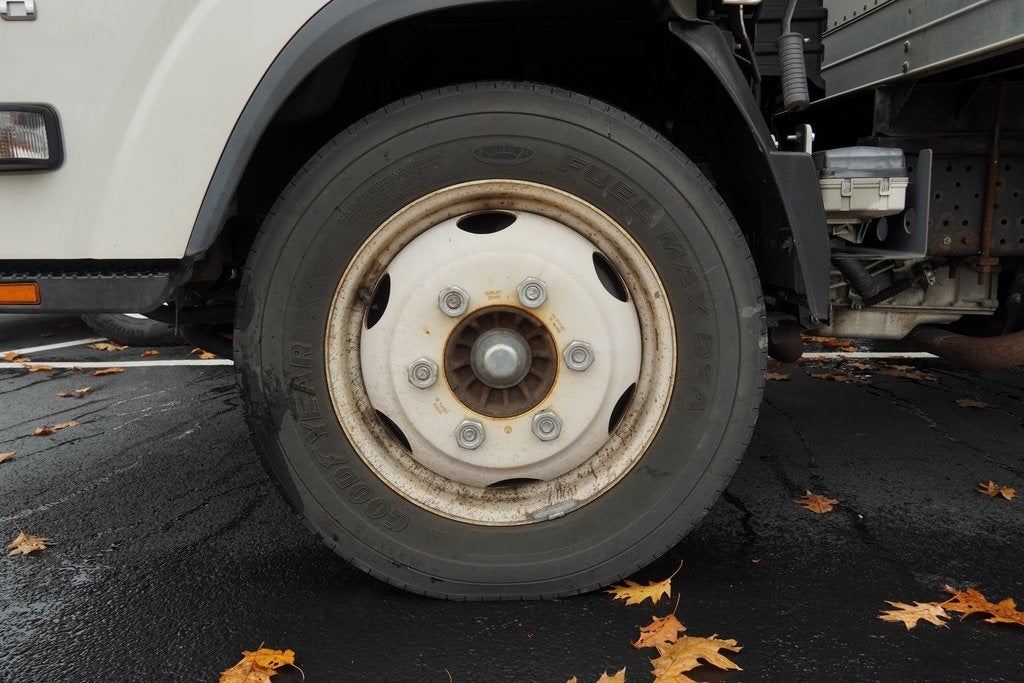

• Wheels, 19.5" x 6", K steel
• Tires, front, 225/70R19.5 G 128/126 L BW HWY VAR1
• Tires, rear, 225/70R19.5 G 128/126 L BW HWY VAR1
• Assist steps
• Glass, tinted
• Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
• Windshield wiper, pulse, wet arm

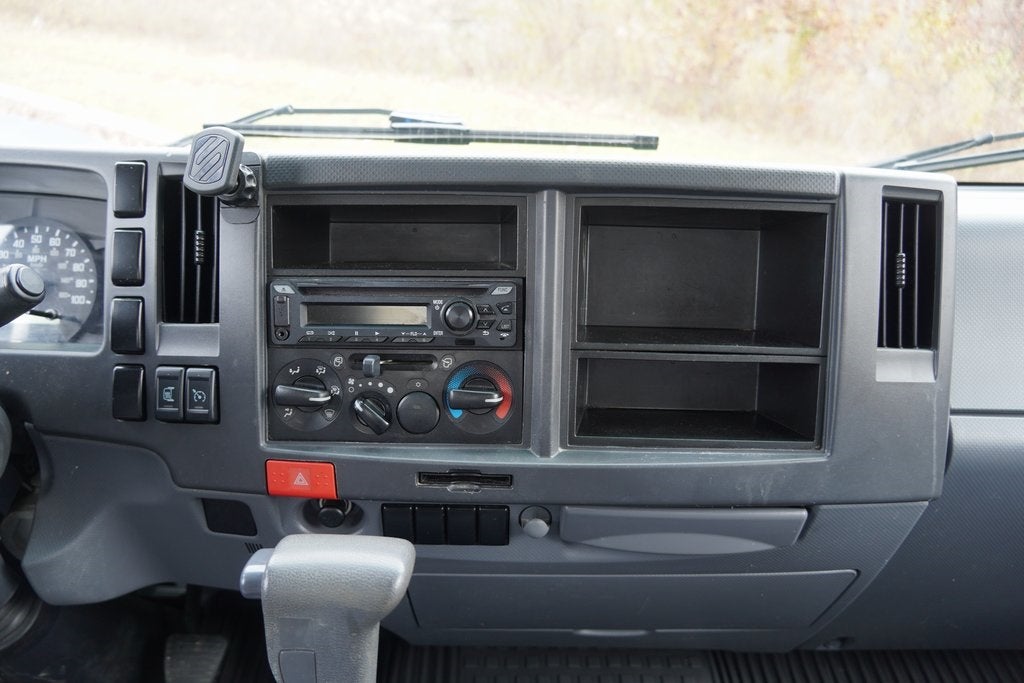

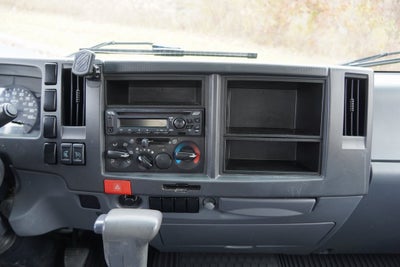

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
• Audio system feature, 2 speakers

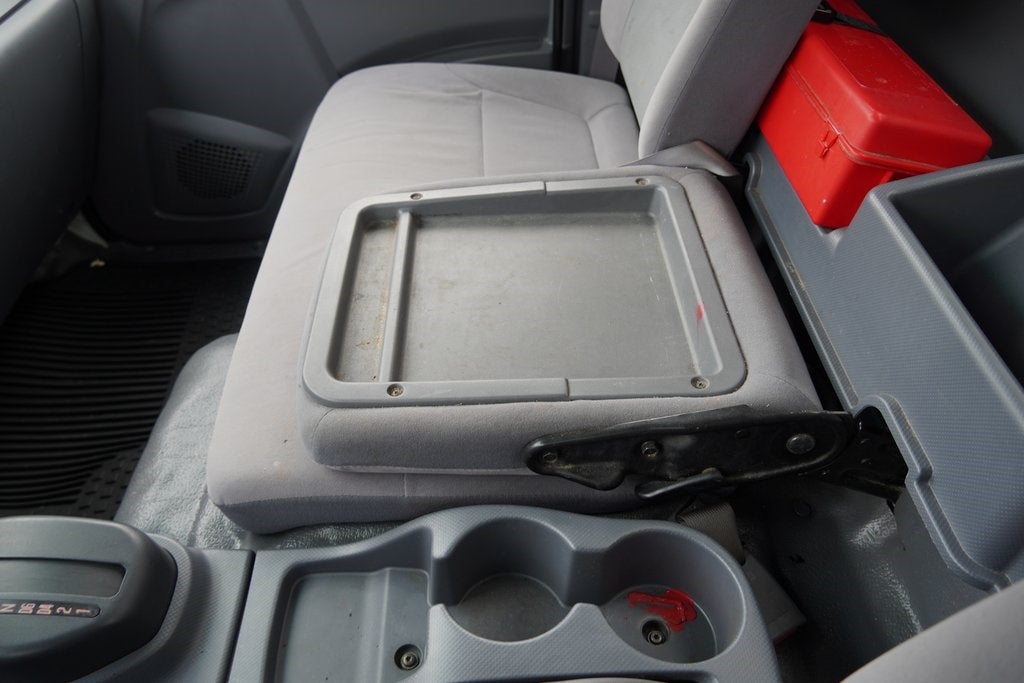

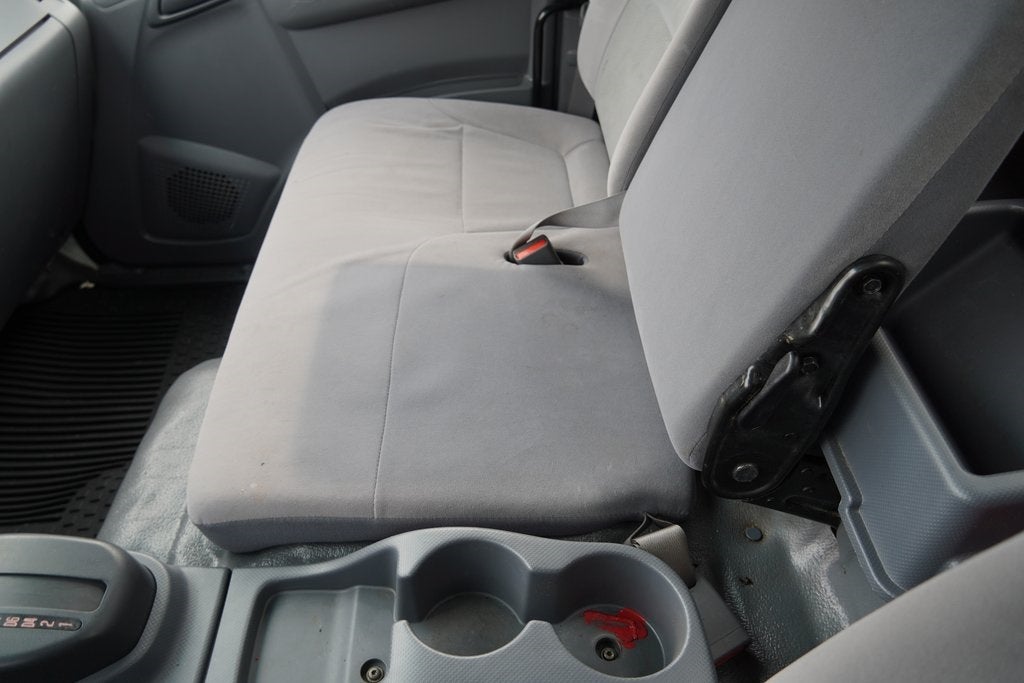

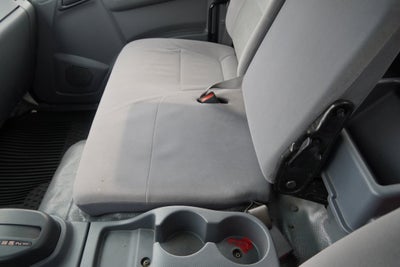

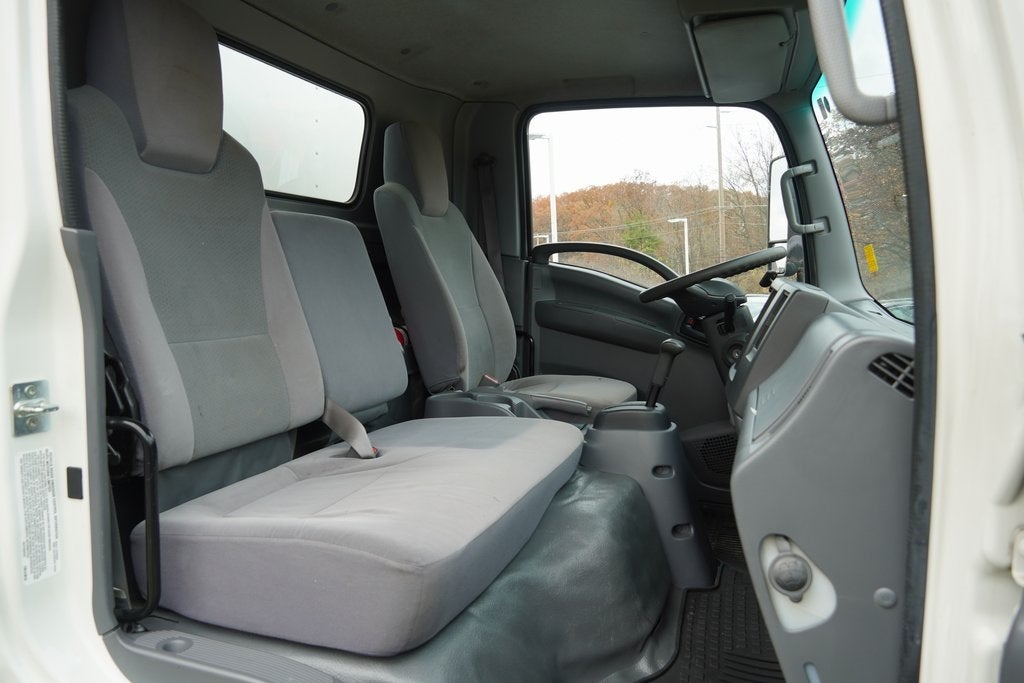

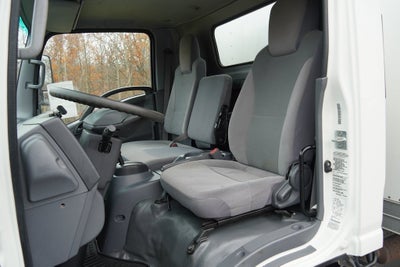

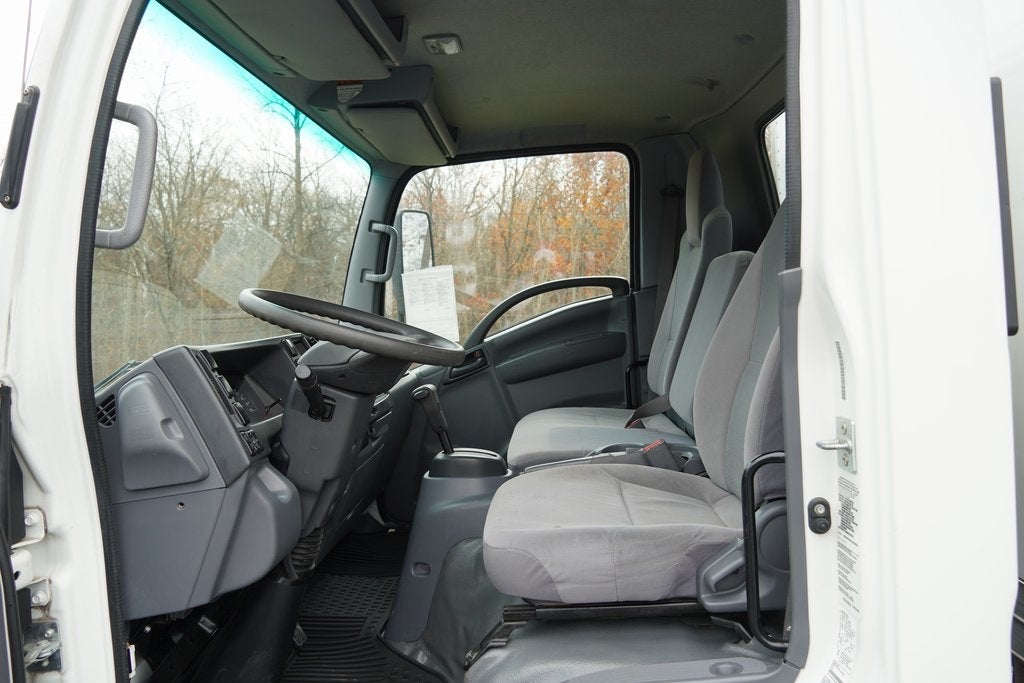

• Seat, front high back bucket driver and passenger tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat
• Seat trim, Cloth
• Cup holders
• Floor mats

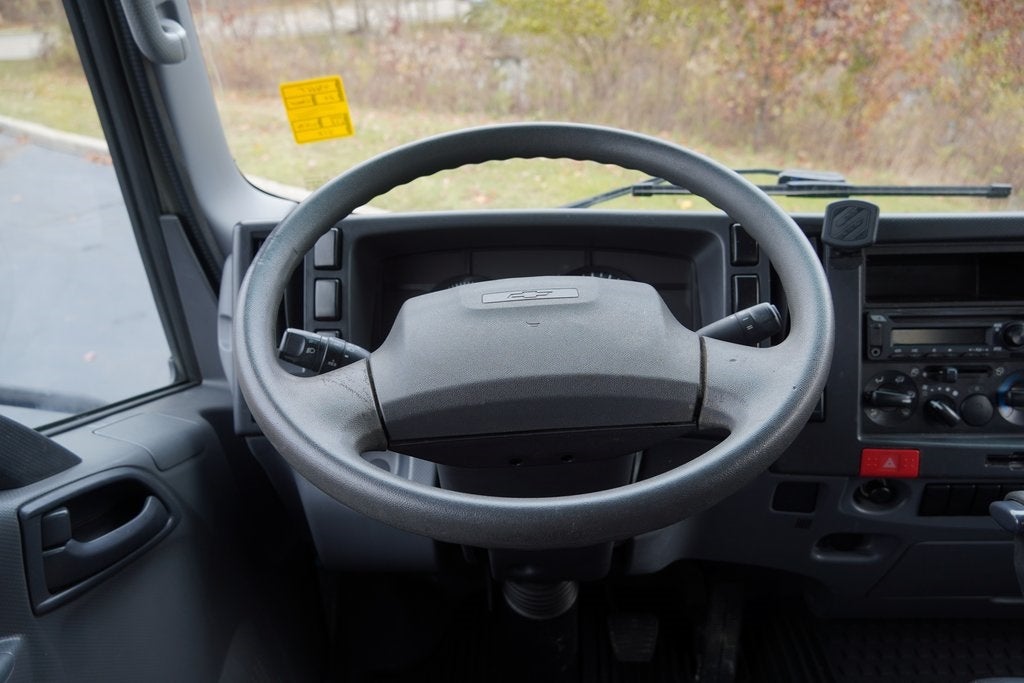

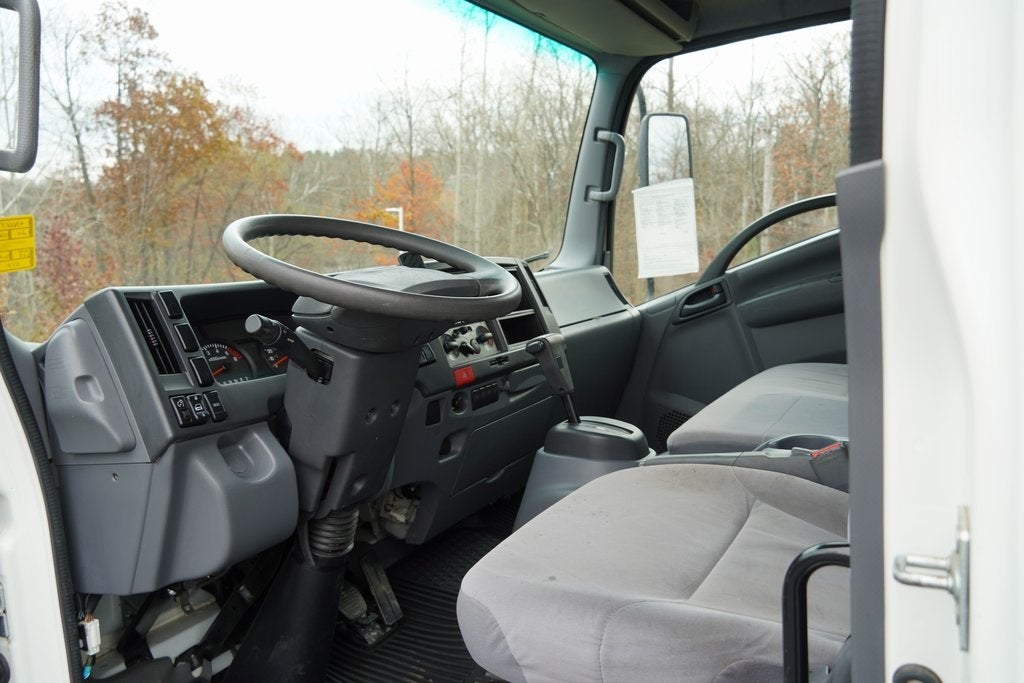

• Steering wheel, urethane
• Steering column, Tilt-Wheel
• Driver Information Center
• Windows, power
• Door locks, power
• Cruise control, electronic, automatic

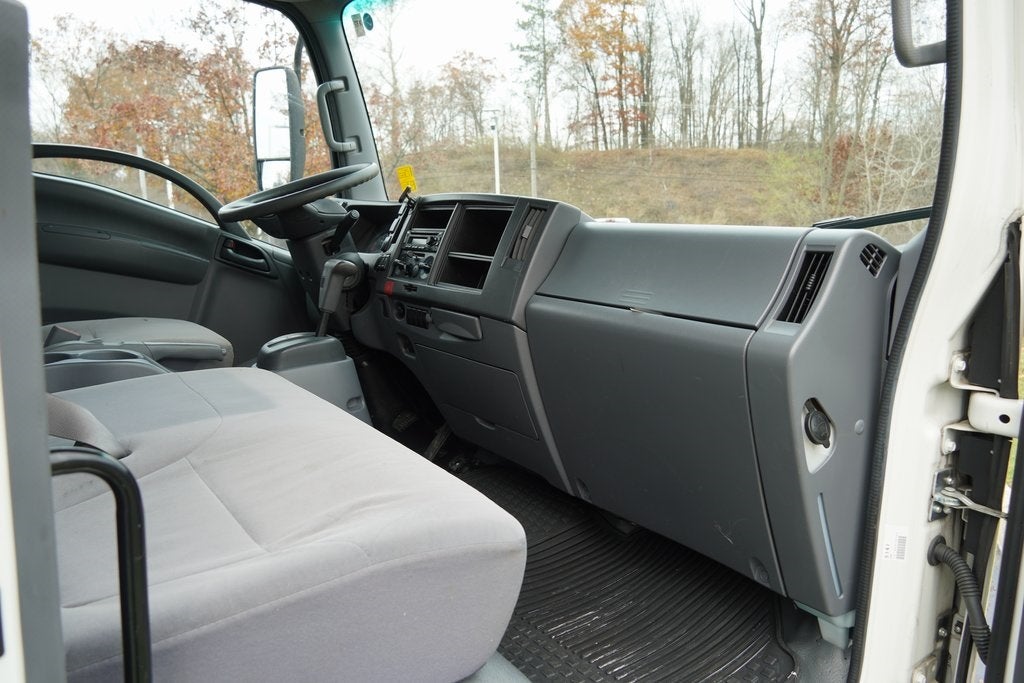

• Air conditioning, single-zone manual, integral in-dash mounted
• Windshield washer bottle access on passenger side dash when passenger-side door is open

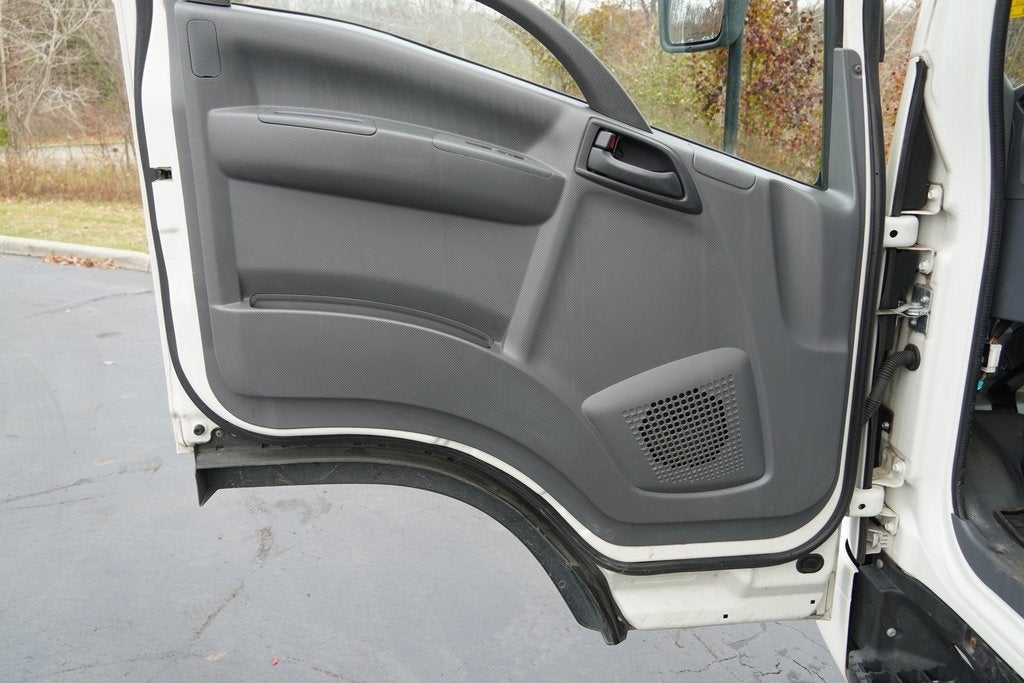

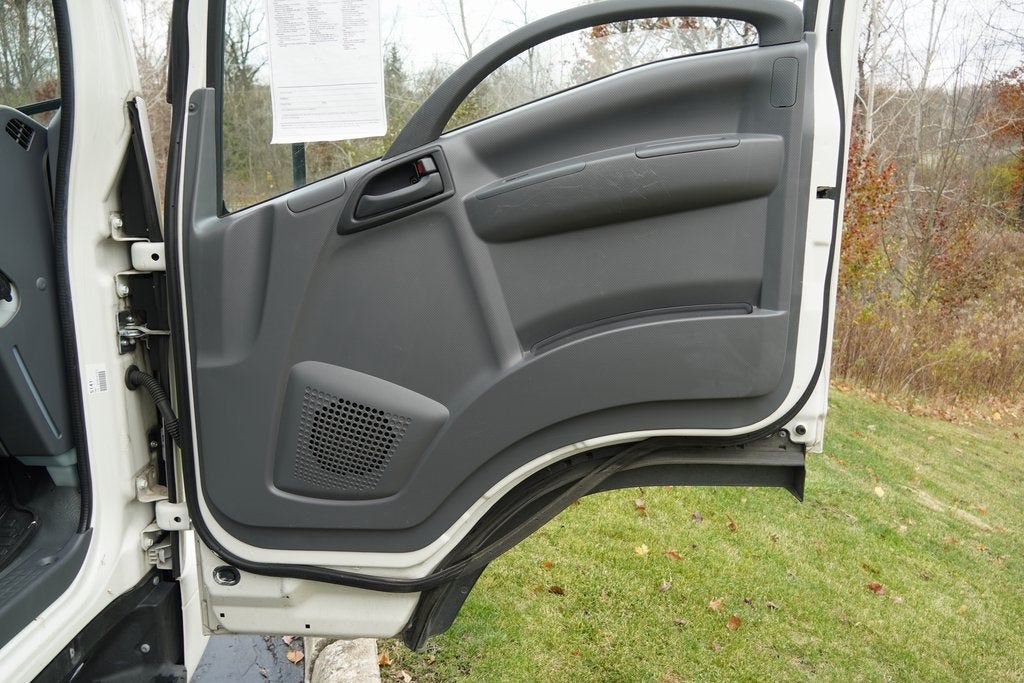

• Storage, door pockets
• Lighting, interior dome
• Storage, seatback pockets

• Daytime Running Lamps

ENGINE, VORTEC 6.0L V8 SFI, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED

• Vortec 6.0L SFI V8 297 hp [221.5 kW] @ 4300 rpm
• 372 lb-ft of torque [504.0 N-m] @ 4000 rpm. Electronically-controlled sequential fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control
• engine oil cooler
• High Idle Mode (1200 rpm)

• 2 Speakers
• AM/FM radio
• CD player
• Radio: AM/FM Stereo w/CD Player & Bluetooth®
• Air Conditioning
• Single Zone Manual Air Conditioning
• Power steering
• Power windows
• ABS brakes
• Front anti-roll bar
• Speed control
• Dual rear wheels
• Bumpers: body-color
• Driver door bin
• Overhead console
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Front Bucket Seats
• Front Center Armrest
• Front High Back Bucket Seats
• Tricoat Cloth Seat Trim
• Passenger door bin
• Wheels: 19.5" x 6.0" K Steel

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6630
• Gross Axle Wt Rating - Rear (lbs): 11020
• Curb Weight - Front (lbs): 3627
• Curb Weight - Rear (lbs): 1896
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 20500
• Suspension
• Suspension Type - Front: Semi Elliptical Spring
• Suspension Type - Rear: Multi-Leaf Spring
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 12900
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Stabilizer Bar Diameter - Front (in): 1.65
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Tires
• Front Tire Order Code: 2TC
• Rear Tire Order Code: 3TC
• Front Tire Size: 225/70R19.5
• Rear Tire Size: 225/70R19.5
• Front Tire Capacity (lbs): 6630
• Rear Tire Capacity (lbs): 12460
• Revolutions/Mile @ 45 mph - Front: 643
• Revolutions/Mile @ 45 mph - Rear: 643
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Offset (mm): 127
• Rear Wheel Offset (mm): 127
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): 57.2
• Frame
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 X 2.76 X 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38.6
• Fuel Tank Location: Frame Rail
• Exterior Dimensions
• Wheelbase (in): 176.00
• Length, Overall (in): 267.50
• Width, Max w/o mirrors (in): 81.30
• Height, Overall (in): 90.90
• Overhang, Front (in): 48.40
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 70.90
• Cab to Axle (in): 153.5
• Cab to End of Frame (in): 196.6
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): 33.0
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Body Length Default Value (ft): 20
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 38.40
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Front Hip Room (in): 67.70
• Summary

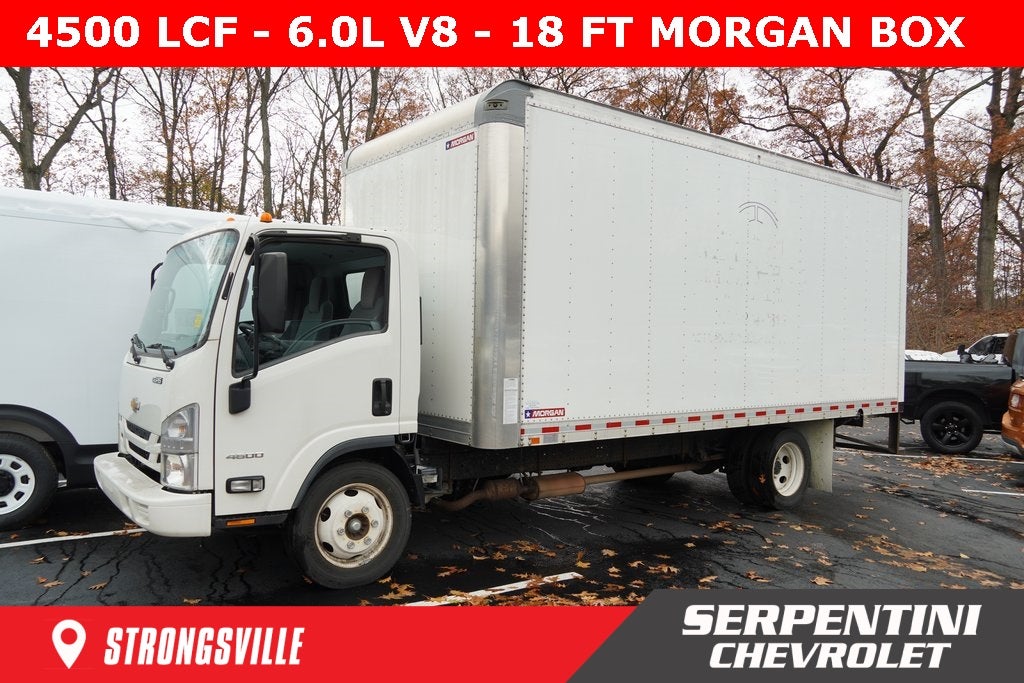

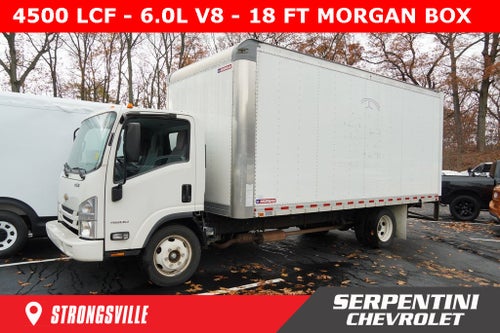

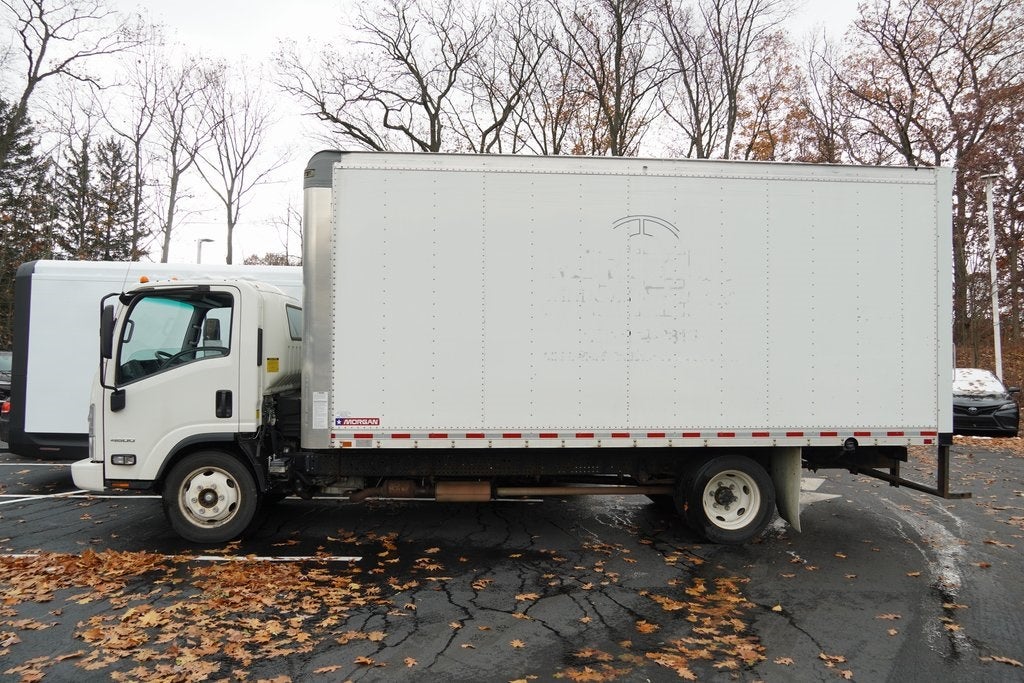

• Vehicle Name: Chevrolet 4500 LCF Gas
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: - TBD -
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 2.6
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
